Automatic mechanical condensate drains

Automatic mechanical condensate drains are designed for fully automatic discharging of condensate or any other nonaggressive fluid from compressed air system.

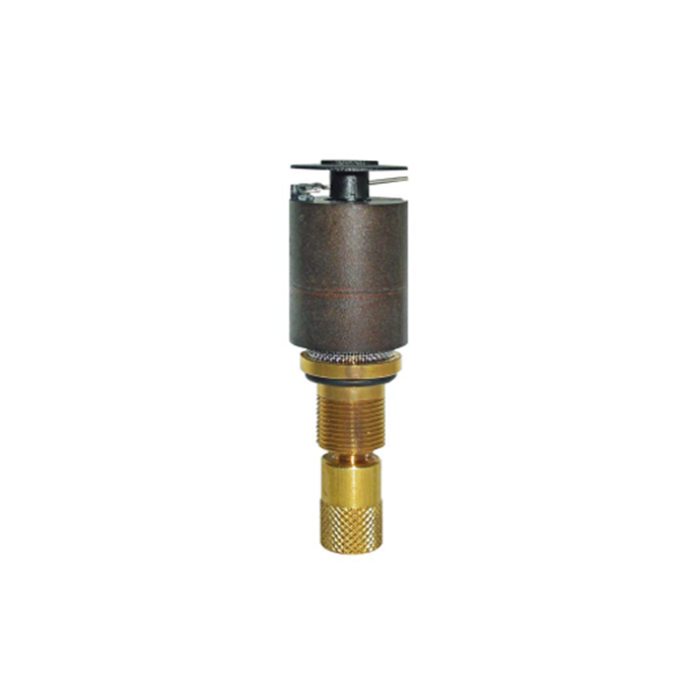

AD16 - Automatic mechanical condensate drain

Technical data
Operating pressure
16 bar
Operating temperature range
1,5 – 65 °C
Mass
0,04 kg
Connection
G 1/2”
High
90 mm
Width
38,5 mm



AD16

AMDS16  – Automatic mechanical condensate drain

Technical data
Operating pressure
16 bar
Operating temperature range
1,5 – 65 °C
Mass
0,05 kg
Connection
M14
High
85 mm
Width
24 mm



AMDS16

BOL20  – Automatic mechanical condensate drain

Technical data
Operating pressure
20 bar
Operating temperature range
1,5 – 65 °C
Mass
0,6 kg
Drain capacity (at 7 bar)
170 l/h
Inlet connection
G ½”
Outlet connection
G ½”
Dimensions
135 x 110 x 130 mm



BOL20
